EEE3074W: Embedded Systems Part C: Implementation

E.B.E.

Scope: This page tells you about Part C of the EEE3074W project.


Overview

This document summaries expect ions for Project 3 Part C, the subsystem prototype phase. See Figure 1 for UML diagram show aspects of this part of the project, and how they relate.

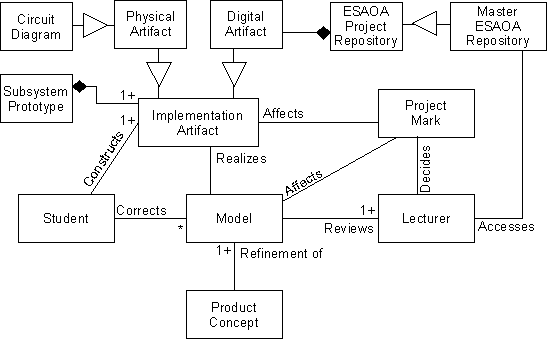

Figure 1: UML diagram describing Part C of The Project.

Requirements

Each member should be responsible for at least some of the prototype code; this may include a module or a substantial part of a model. All members should participate on the circuit design and in integrating the code and circuit into a working subsystem prototype.

The following models need to be submitted by 17 October:

• Final circuit diagram (can be copy of MS-B version if it wasn't changed)

• User interface

  • This could be a menu module or other module to control the front-end of the system

  • Include debugging and testing code, e.g. to display values sampled by an ADC

• Driver

  • Module or code to control a peripheral

• Signal processing

  • Methods for sampling and processing of input, and generating outputs

  • e.g. doing a digital LPF/averaging, detecting trigger events, etc.

• Comms

  • Communications module for embedded side (and PC side if needed)

  • Implementing a (packet) protocol, include error detection

  • Its preferable to have the Comms module separate (i.e. a level above RS232C)

  • Example functions: void send_ADCdata ();

Repository

All teams have a shared repository in the /REPOSITORY/Project1/TEAMn directory, where n is the number of your team. You can keep your MASTER files under the MASTER directory in your repository.

Submissions

The code needs to be submitted on-line using the Project PROROTYPE task on the course website. If you are using ESAOA, submit your entire framework directory, alternately work in a single directory, and tar and gzip the entire directory and hand it in.

Important: only one submission per group please.
